CE Approved

In Production

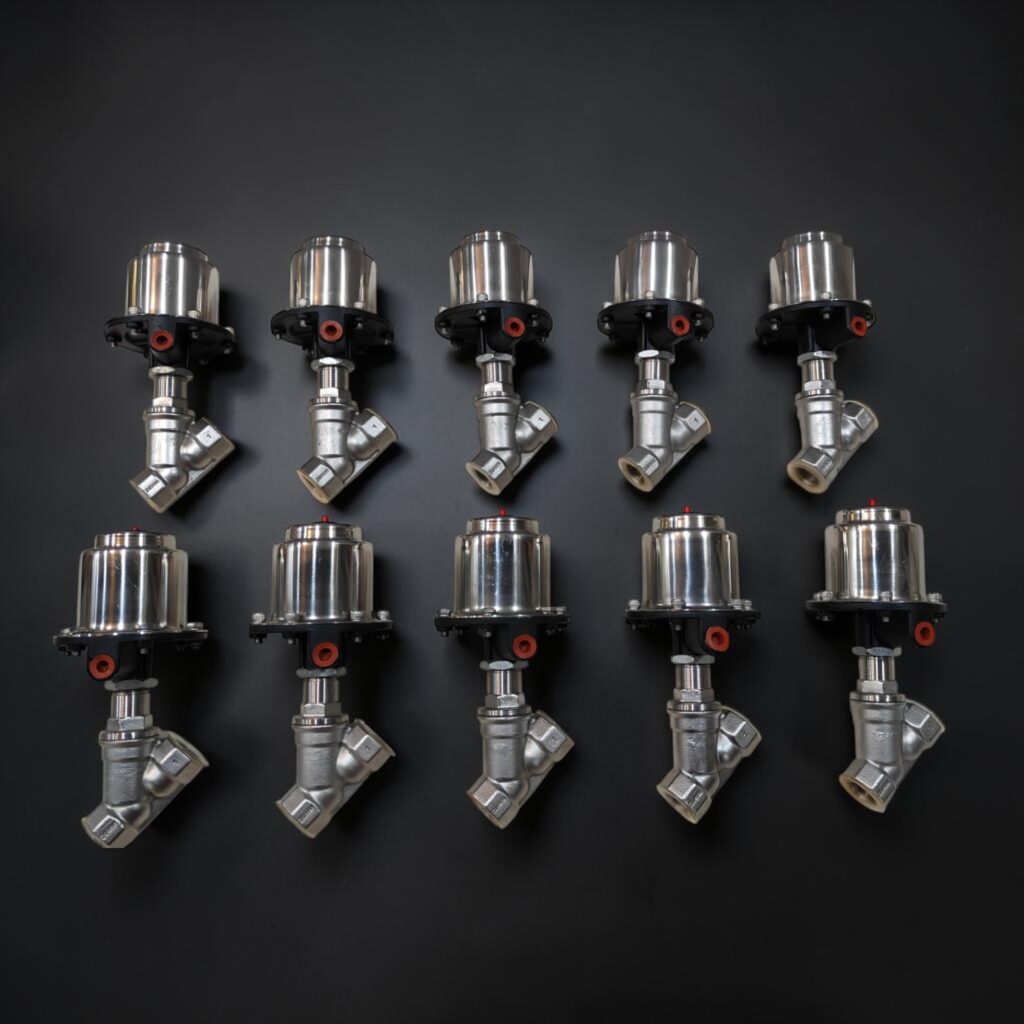

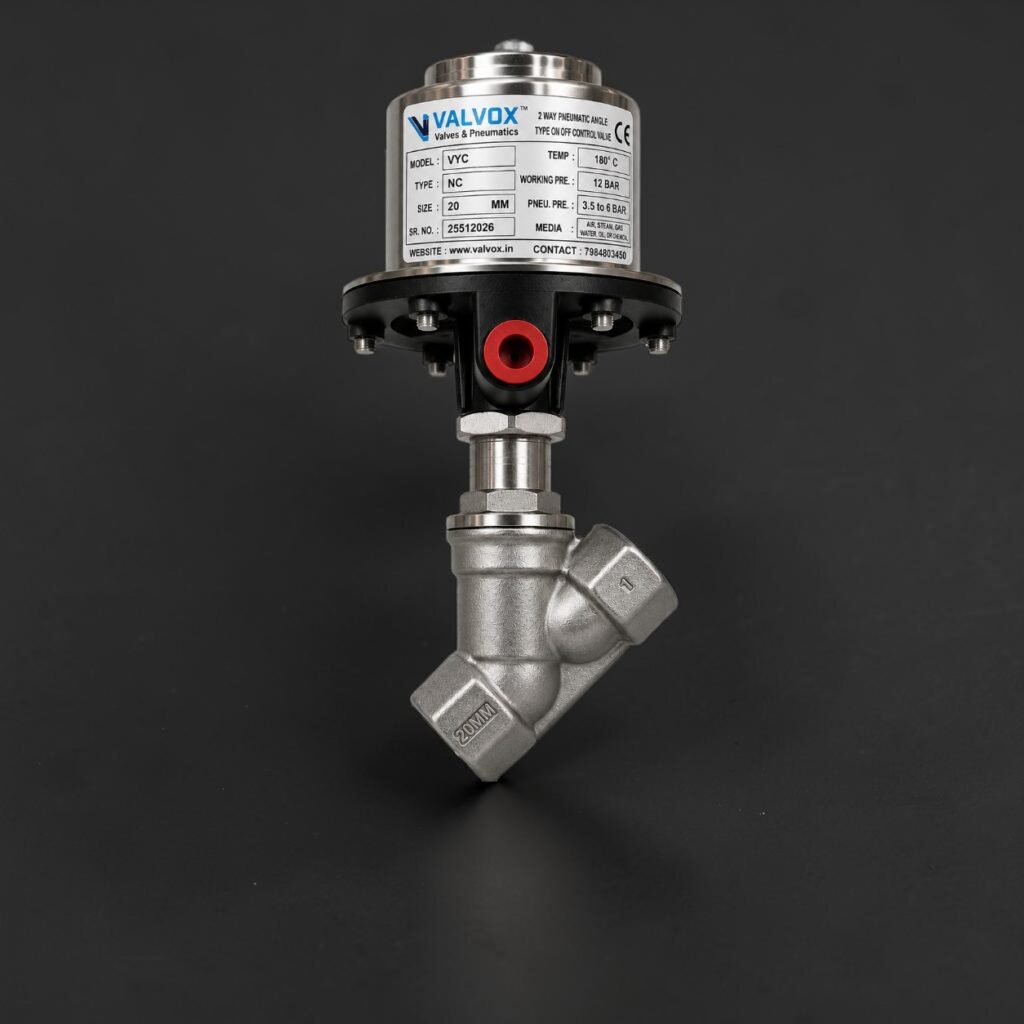

Y Type Angle Seated Control Valve

Flagship flow control solution engineered for extreme environments.
High Pressure Handling: Rated up to 6,000 PSI continuous operating pressure.
Zero Leakage: Precision metal-to-metal seating guarantees zero fugitive emissions.
ISO Certified: Manufactured under strict ISO 9001:2015 quality standards.
Technical Specifications
Size Range

15MM To 50MM

Body Materials
S.S – 304, S.S – 316
Seat Materials
PTFE
Temperature Range
PTFE 180°C / CFT 220°C
Working Pressure
Upto 10 BAR
End Connection

Y-Body: Screwed, Flanged, Triclover (T.C)

Leakage

Class VI, Bubble Tight Shut Off

Industrial Applications
Air
Water
Oil
Gas
Steam
Chemical

Precision Engineered Valves

Manufactured for Reliability, Efficiency, and Long-Term Performance
